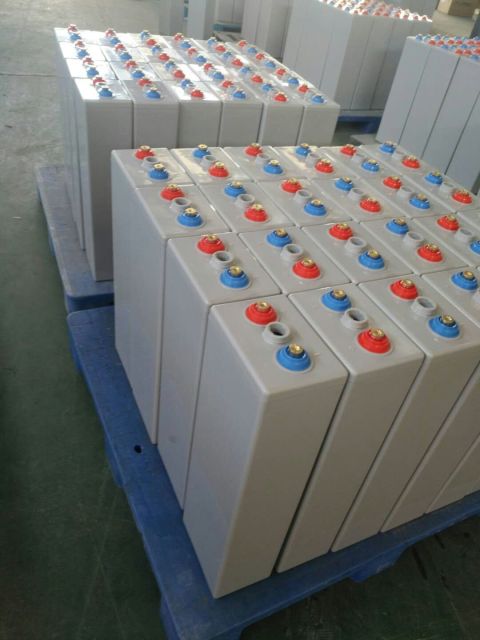

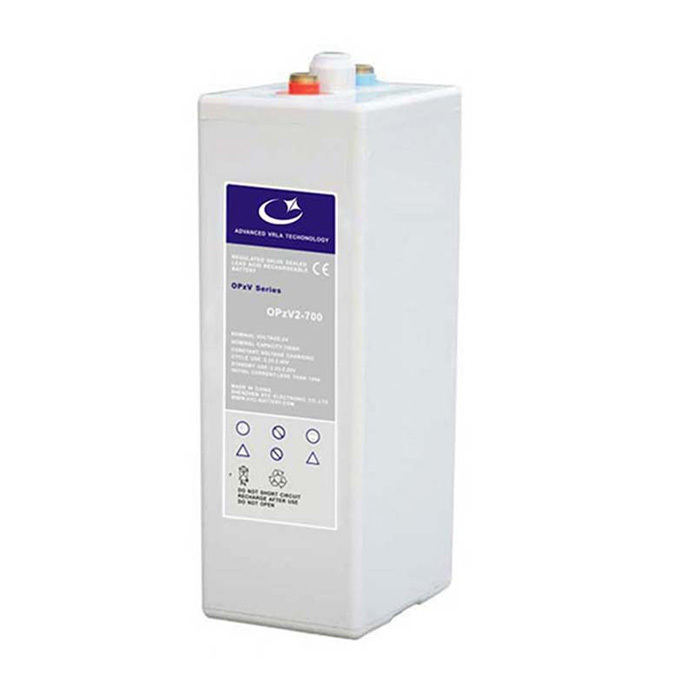

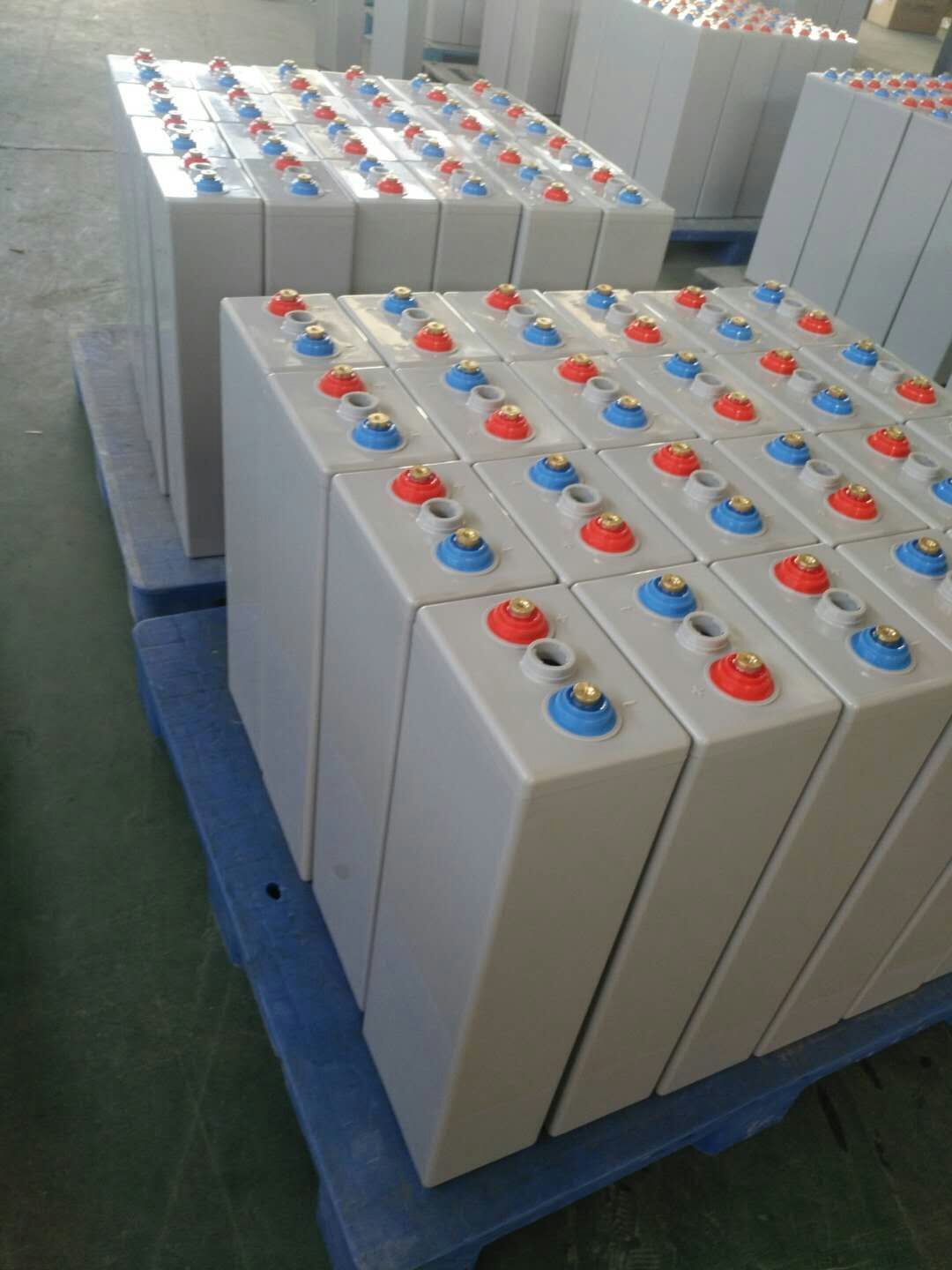

OPZV batteries 2V 700AH Tubular Gel Deep Cycle Battery

No.0140090

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions. This series is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Battery
2V Tubular Gel VRLA Battery
Design Life
Up to 20 years
Model
2V 10 OPzV 700
Nominal Voltage
2V
Nominal Capacity
700 Ah@C10 (to 1.8Vpc)
Dimensions
L245*W210*H506mm
Weight
51kg
Terminal
Female Copper Insert M8 (Torque:10~12Nm)
Internal Resistance
Approx. 0.6mOhm(fully charged@ 20°C)
Max.Charge Current
140A
Max. Discharge Current
2000 A
Short Cicuit Current
3300 A
Self Discharge
Approx.2% per month @20°C
Ambient Temperature
Charge:-30°C~65°C, Discharge:-40°C~65°C, Storage:-25°C~45°C
Container Material
ABS(Flame-retardant ABS UL94-V0 is optional)
Applications
UPS Systems, Grid- Ancillary Services, Power Generation & Utilities, Telecom Networks, Emergency Lighting, Traffic Signal Systems
