DC seires: Deep Cycle AGM batteries 6V12V

Deep cycle AGM batteries 6V12V

When it comes to Deep Cycle batteries, the details matter. Construction, plate chemistry, and craftsmanship all have to be in sync to get the longest life in the most demanding applications. XYC DC series batteries use more lead and heavier plates creating more reserve capacity and maximum life cycles. Whether you need deep cycling power for your Boat or RV, Golf Car or Floor Cleaning machine we have the right battery for you.

DC Series: AGM Deep Cycle Battery:

DC200-6(6V200AH)

DC220-6(6V220AH)

DC224-6(6V224AH)

DC245-6(6V245AH)

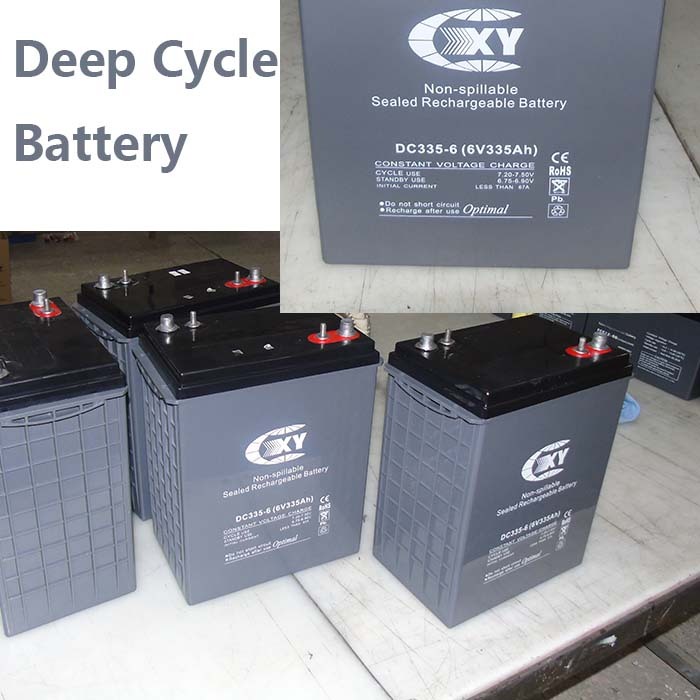

DC335-6(6V335AH)

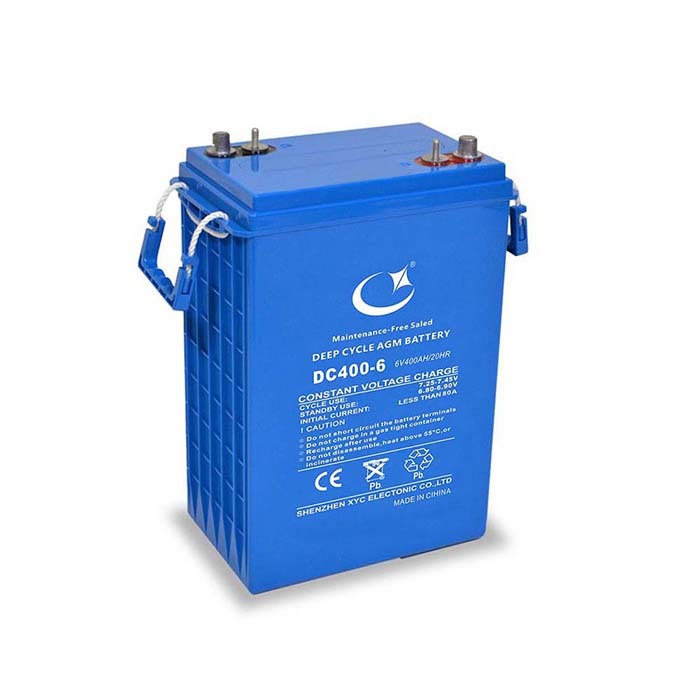

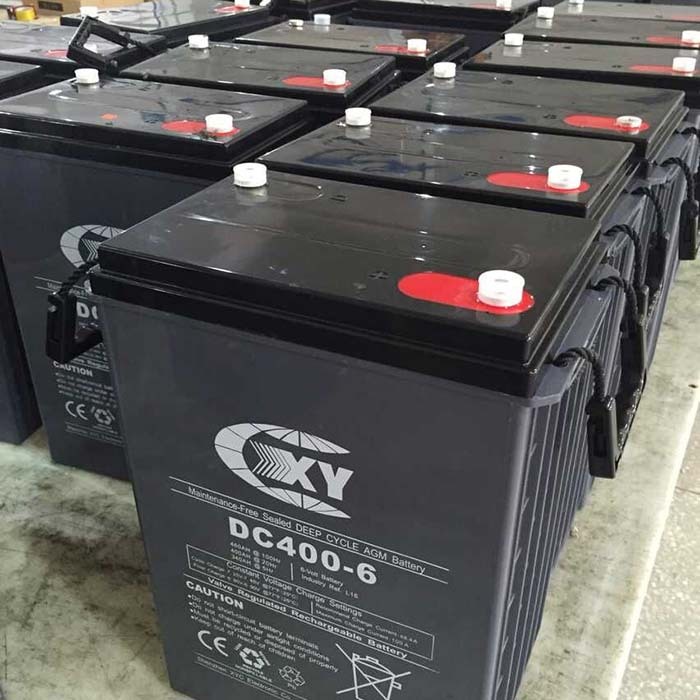

DC400-6(6V400AH)

DC200-8(8V200AH)

DC24-12(12V24AH)

DC26-12(12V26AH)

DC35-12(12V35AH)

DC40-12(12V40AH)

DC65-12(12V65AH)

DC70-12(12V70AH)

DC85-12(12V85AH)

DC90-12(12V90AH)

DC105-12(12V105AH)

DC115-12(12V115AH)

DC115-12S(12V115AH)

DC120-12(12V120AH)

DC135-12(12V135AH)

DC150-12(12V150AH)

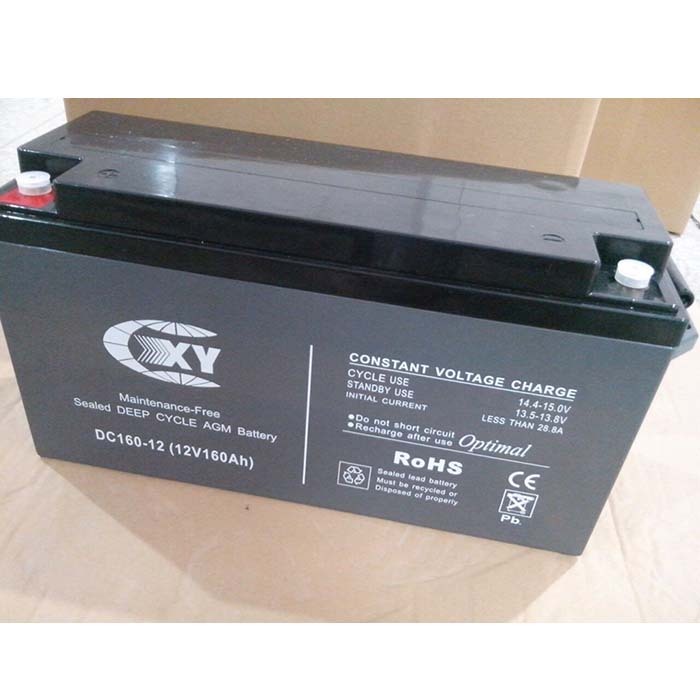

DC160-12(12V160AH)

DC180-12(12V180AH)

DC200-12(12V200AH)

DC210-12(12V210AH)

DC220-12(12V220AH)

DC240-12(12V240AH)

DC260-12(12V260AH)

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	Industry Ref.	Nominal Voltage (V)	Nominal Capacity (AH)	Battery Dimension								Weight (Approx.)		Terminal Type
				Length		Width		Height		Total Height		Weight (Approx.)
				mm	in	mm	in	mm	in	mm	in	kg	Lbs
DC200-6	27	6	200	306	12.05	169	6.65	220	8.66	226	8.90	30.0	66.14	F10
DC220-6	27	6	220	306	12.05	174	6.85	220	8.66	226	8.90	32.2	70.99	F10
DC224-6	GC2	6	224	260	10.24	180	7.09	245	9.65	251	9.88	29.8	65.70	F10
DC245-6	(DIN)	6	245	244	9.61	190	7.48	275	10.83	275	10.83	30.0	66.14	AP
DC335-6	902/J305	6	335	295	11.61	178	7.01	346	13.62	366	14.41	46.0	101.41	F10
DC400-6	L16	6	400	295	11.61	179	7.05	404	15.91	424	16.69	55.7	122.80	F10
DC200-8	GC8H	8	200	260	10.24	182	7.17	295	11.61	299	11.77	37.6	82.89	F10
DC24-12	N/A	12	24	167	6.57	175	6.89	125	4.92	125	4.92	8.0	17.64	T1
DC26-12	N/A	12	26	167	6.57	175	6.89	125	4.92	125	4.92	8.3	18.30	T1
DC26-12S	N/A	12	26	166	6.54	126	4.96	174	6.85	174	6.85	8.4	18.52	T1
DC35-12	U1	12	35	196	7.72	131	5.16	155	6.10	167	6.57	10.5	23.15	T3
DC40-12	U1L	12	40	198	7.80	166	6.54	174	6.85	174	6.85	14.2	31.31	F11
DC55-12	22NF	12	55	229	9.02	138	5.43	208	8.19	212	8.35	16.0	35.27	T3
DC65-12	93	12	65	351	13.82	167	6.57	176	6.93	176	6.93	23.6	52.03	T3
DC70-12	24	12	70	260	10.24	169	6.65	211	8.31	215	8.46	24.0	52.91	T3
DC85-12	24	12	85	260	10.24	169	6.65	211	8.31	215	8.46	25.1	55.34	T3
DC90-12	27	12	90	307	12.09	169	6.65	211	8.31	215	8.46	28.2	62.17	T3
DC105-12	27	12	105	307	12.09	169	6.65	211	8.31	215	8.46	30.2	66.58	T3
DC115-12	31	12	115	331	13.03	175	6.89	214	8.43	218	8.58	32.9	72.53	F14
DC115-12S	31	12	115	328	12.91	172	6.77	214	8.43	220	8.66	32.7	72.09	F14
DC120-12	N/A	12	120	407	16.02	174	6.85	210	8.27	240	9.45	38.2	84.22	F10
DC135-12	N/A	12	135	341	13.43	173	6.81	281	11.06	287	11.30	39.2	86.42	F10
DC150-12	N/A	12	150	484	19.06	171	6.73	241	9.49	241	9.49	44.5	98.11	F10
DC160-12	N/A	12	160	484	19.06	171	6.73	241	9.49	241	9.49	45.5	100.31	F10
DC180-12	4D	12	180	532	20.94	206	8.11	216	8.50	221	8.70	56.0	123.46	F10
DC200-12	4D	12	200	522	20.55	240	9.45	219	8.62	224	8.82	58.4	128.75	F10
DC210-12	4D	12	210	532	20.94	206	8.11	216	8.50	221	8.70	57.8	127.43	F10
DC220-12	4D	12	220	522	20.55	240	9.45	219	8.62	224	8.82	65.0	143.30	F10
DC240-12	8D	12	240	520	20.47	269	10.59	203	7.99	208	8.19	71.0	156.53	F10
DC260-12	8D	12	260	521	20.51	269	10.59	220	8.66	224	8.82	77.0	169.76	F10
