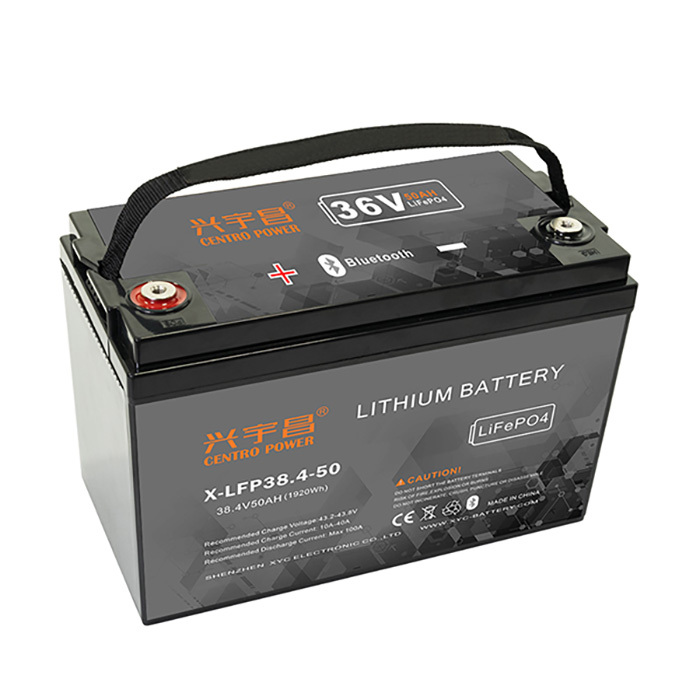

36V 50Ah Marine Trolling Motor LiFePO4 Lithium Battery

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP38.4-50
Nominal Voltage
38.4V
Nominal Capacity(20°C)
50Ah
Energy
1920Wh
Operating Voltage Range
30V~43.8V
Cell Configuration
12S1P
Low-Temperature Charge Protection
Yes
Bluetooth
Yes
Self-Heating
Yes
Max. Continuous Charge Current
25A
BMS High Voltage Cutoff
48.3V
Dimension
L329*W172H214mm
Case Material
ABS
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~60°C, Storage:0°C~35°C
Max Continuous Discharge
100A
Terminal Type
M8
Cell Type-Chemistry
LiFePO4
Weight
About 14KG
