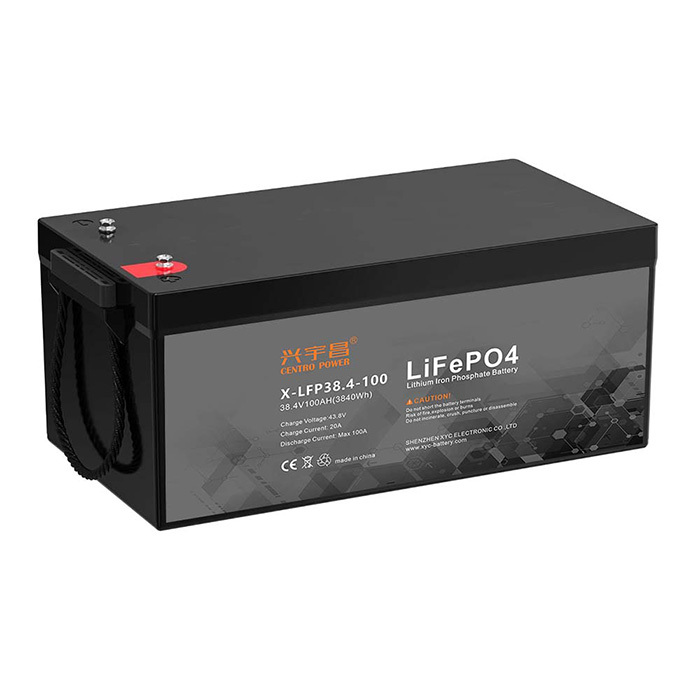

36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP38.4-100
Nominal Voltage
38.4V
Nominal Capacity(20°C)
100Ah
Energy
3840Wh
Operating Voltage Range
30V~43.8V
Cell Configuration
12S1P
Low-Temperature Charge Protection
Yes
Bluetooth
Yes
Self-Heating
Yes
Max. Continuous Charge Current
100A
Max Charge 10 Sec
150A
BMS High Voltage Cutoff
43.8V
Dimension
L522*W239*H218mm
Case Material
ABS
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~60°C, Storage:0°C~35°C
Max Continuous Discharge
100A
Max Discharge 60 Sec
200A
Terminal Type
M8 Female
Cell Type-Chemistry
Prismatic-LiFePO4
Weight
About 75lbs
$0.00
6V LiFePO4 Lithium Battery:
6.4V 4AH
6.4V 4.5AH
6.4V5AH
6.4V6AH
  • 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof
