LiFePO4 Solar Batteries For Energy Storage System

GET A QUOTE
  • 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof
  • 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof

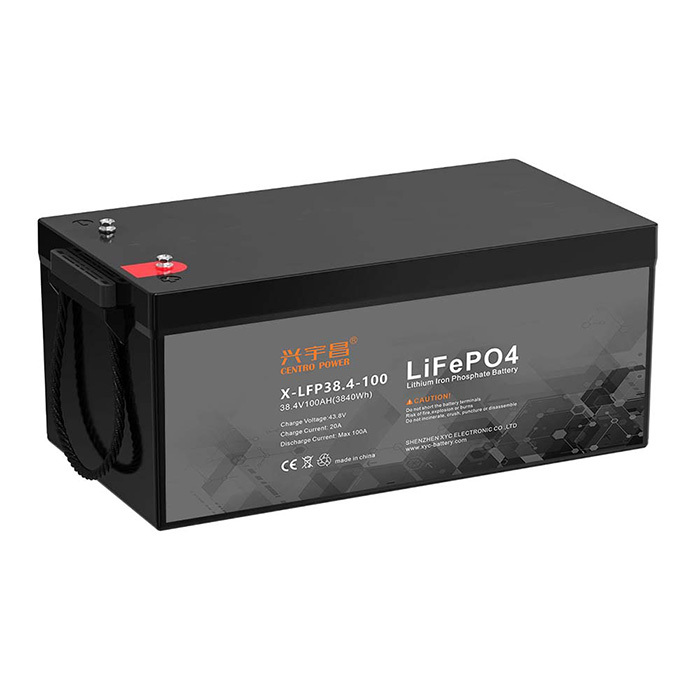

36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP38.4-100
Nominal Voltage
38.4V
Nominal Capacity(20°C)
100Ah
Energy
3840Wh
Operating Voltage Range
30V~43.8V
Cell Configuration
12S1P
Low-Temperature Charge Protection
Yes
Bluetooth
Yes
Self-Heating
Yes
Max. Continuous Charge Current
100A
Max Charge 10 Sec
150A
BMS High Voltage Cutoff
43.8V
Max Continuous Discharge
100A
Max Discharge 60 Sec
200A
Case Material
ABS
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~60°C, Storage:0°C~35°C
Dimension
L522*W239*H218mm
Terminal Type
M8 Female
Cell Type-Chemistry
Prismatic-LiFePO4
Weight
About 75lbs
$0.00
6V LiFePO4 Lithium Battery:
6.4V 4AH
6.4V 4.5AH
6.4V5AH
6.4V6AH
  • 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery - Bluetooth, Heating, Waterproof
