LiFePO4 Solar Batteries For Energy Storage System

GET A QUOTE
  • 3.65V 76AH Farasis Cell 250A
  • 3.65V 76AH Farasis Cell 250A

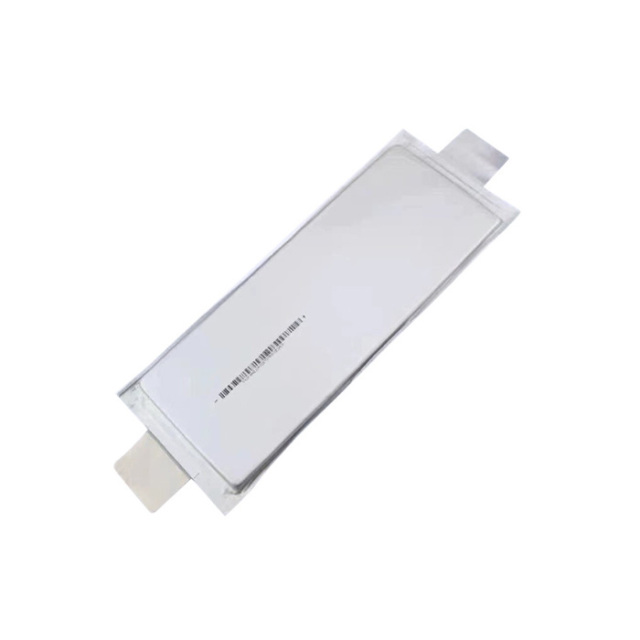

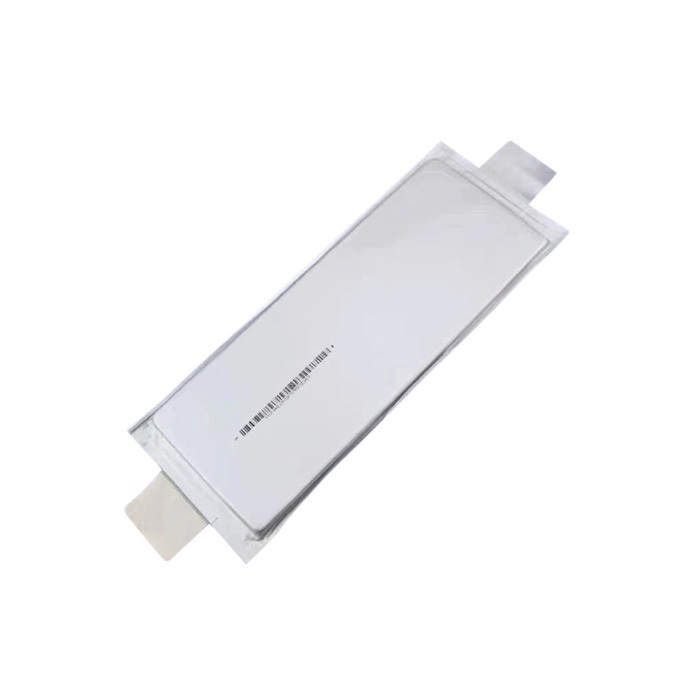

3.65V 76AH Farasis Cell 250A

Capacity
76.3Ah(25±2℃,0.33C,BOL )
Discharge energy
≥278.5 Wh
Weight energy density
≥284 Wh/kg
Volumetric energy density
≥626 Wh/L
Operating voltage range
2.75 ~ 4.20 V
AC internal resistance
0.2 ~ 0.9 mΩ
DC internal resistance
1.16 ~ 1.37 mΩ
Charging operating temperature
-30 ~ 55℃
Discharging operating temperature
-35 ~ 60℃
Cycle life
≥1500
Battery weigh
971.5±10.5 g
Cell size
14.4*105.5*294.4 mm
Standard charge current
25.43A
Standard charge voltage
4.2V
Standard discharge current
25.43A
Maximum sustained discharge current
115 A (25±2℃,90%SOC, @180s)
Maximum pulse discharge current (long pulse)
250 A (25±2℃, 35s )
Maximum pulse discharge current (short pulse)
280 A
  • 3.65V 76AH Farasis Cell 250A
