LiFePO4 Solar Batteries For Energy Storage System

GET A QUOTE
  • 24V 100Ah Bluetooth Lithium Battery with Low-Temp Cut-Off Protection, for Trolling Motors, RVs, Marine, Off-Grid and Home Energy
  • 24V 100Ah Bluetooth Lithium Battery with Low-Temp Cut-Off Protection, for Trolling Motors, RVs, Marine, Off-Grid and Home Energy

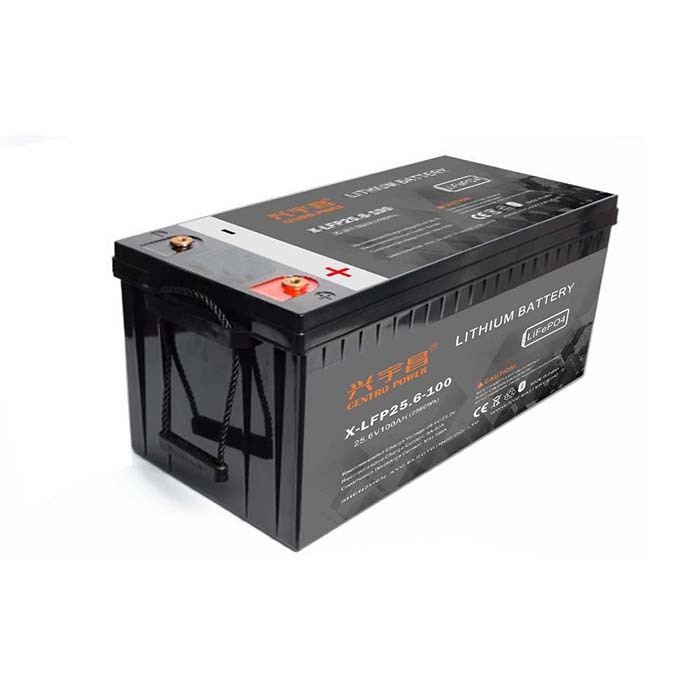

24V 100Ah Bluetooth Lithium Battery with Low-Temp Cut-Off Protection, for Trolling Motors, RVs, Marine, Off-Grid and Home Energy

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP25.6-100
Nominal Voltage
25.6V
Nominal Capacity(20°C)
100Ah
Energy
2560Wh
Operating Voltage Range
20V~29.2V
Cell Configuration
8S1P
Low-Temperature Charge Protection
Yes
Bluetooth
Yes
Self-Heating
Yes
Series Connections
Max(4) in Series
Max. Continuous Charge Current
100A
BMS High Voltage Cutoff
29.2V
Dimension
L522*W239*H218.5mm
Case Material
ABS
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~60°C, Storage:0°C~35°C
Max Continuous Discharge
100A
Terminal Type
M8 Female
Cell Type-Chemistry
Prismatic-LiFePO4
Weight
About 19kg
  • 24V 100Ah Bluetooth Lithium Battery with Low-Temp Cut-Off Protection, for Trolling Motors, RVs, Marine, Off-Grid and Home Energy
