LiFePO4 Solar Batteries For Energy Storage System

GET A QUOTE
  • 12V 460Ah (5.89kWh) - Heated & Bluetooth LiFePO4 Battery
  • 12V 460Ah (5.89kWh) - Heated & Bluetooth LiFePO4 Battery

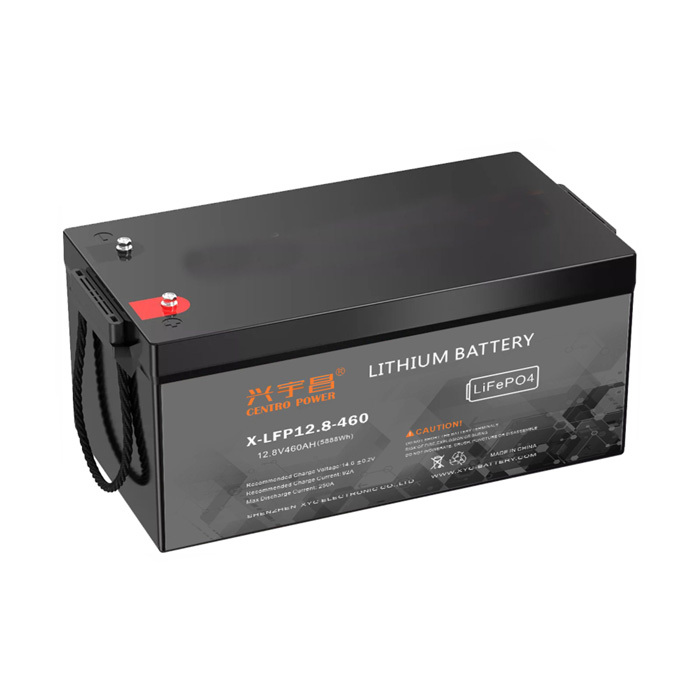

12V 460Ah (5.89kWh) - Heated & Bluetooth LiFePO4 Battery

XYC X-LFP series batttery packs range from 12V,24V,36V to 48V with different capacities, designed with the safest LiFePO4 battery chemistry, typically for replacing lead-acid/ GEL/AGM. batteries. All batteries are integrated with BMS and with IP65 waterproof casings, with balancing function and optional communication protocols(Bluetooth and CANBus/RS485/RS232/UART/SMBus/iic), all MUST-have protections implemented such as over charge protections, over discharge protections, over current protections over/low temp.protections, short-short-circuit protections and so on, manintenance-free and simple to use -drop in/plug & play. All batteries support daisy-chain connection(series and parallel connections)
Model
X-LFP51.2-460
Nominal Voltage
12.8V
Nominal Capacity(20°C)
460Ah
Energy
5888Wh
Operating Voltage Range
10V~14.6V
Cell Configuration
4S2P
Low-Temperature Charge Protection
Yes
Bluetooth
Yes
Self-Heating
Yes
Series Connections
Max(4) in Series
Max. Continuous Charge Current
230A
Max Charge 5 Sec
400A
Float Volage
13.5V
BMS High Voltage Cutoff
14.6V
Dimension
L520*W269*H220mm
Case Material
ABS
Operating Temperature Range
Charge:0°C~45°C, Discharge:-20°C~60°C, Storage:0°C~35°C
Max Continuous Discharge
230A
Max Discharge 30 Sec
500A
Terminal Type
M8 Female
Cell Type-Chemistry
Prismatic-LiFePO4
Weight
About 95lbs
  • 12V 460Ah (5.89kWh) - Heated & Bluetooth LiFePO4 Battery
